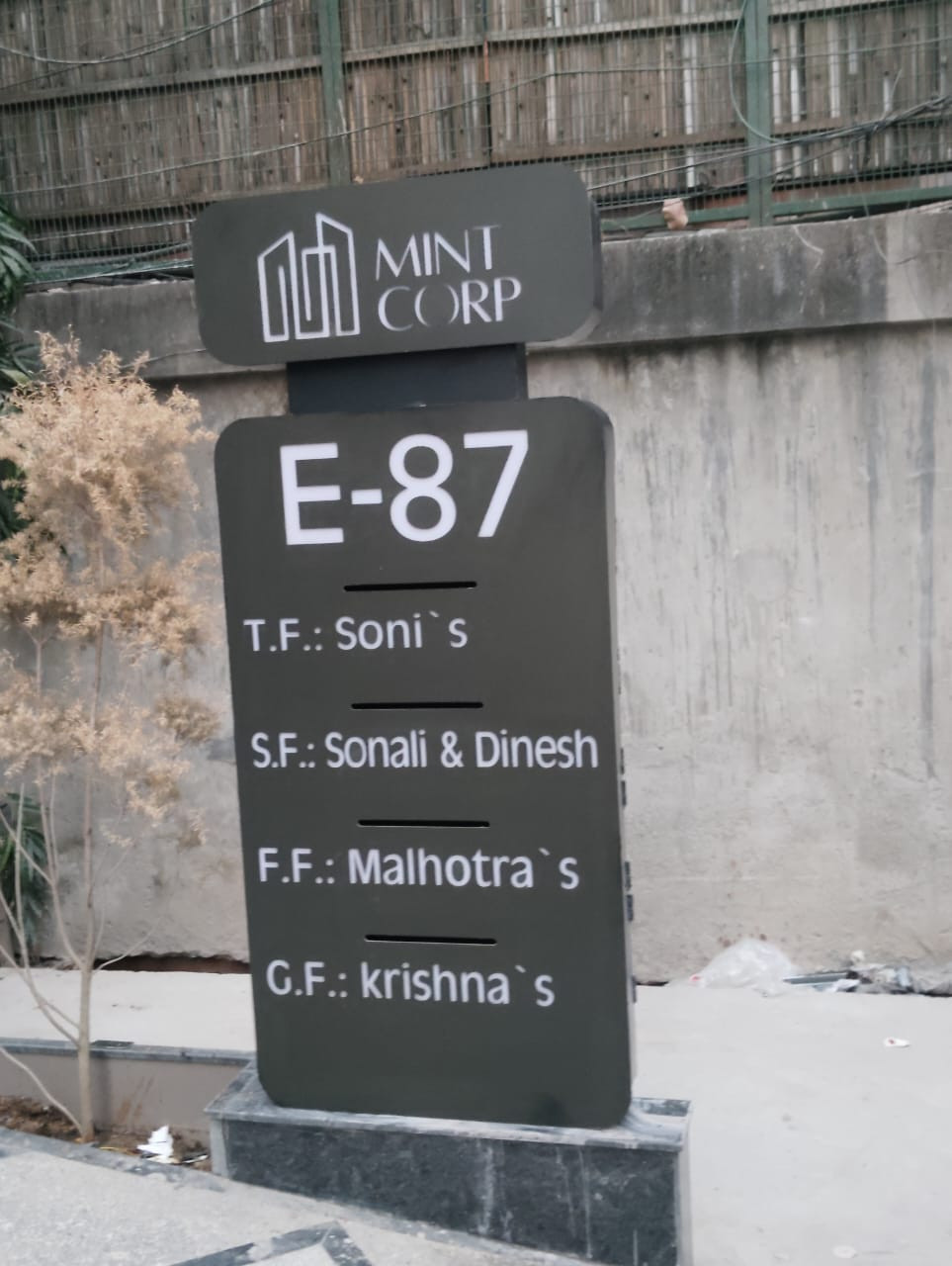

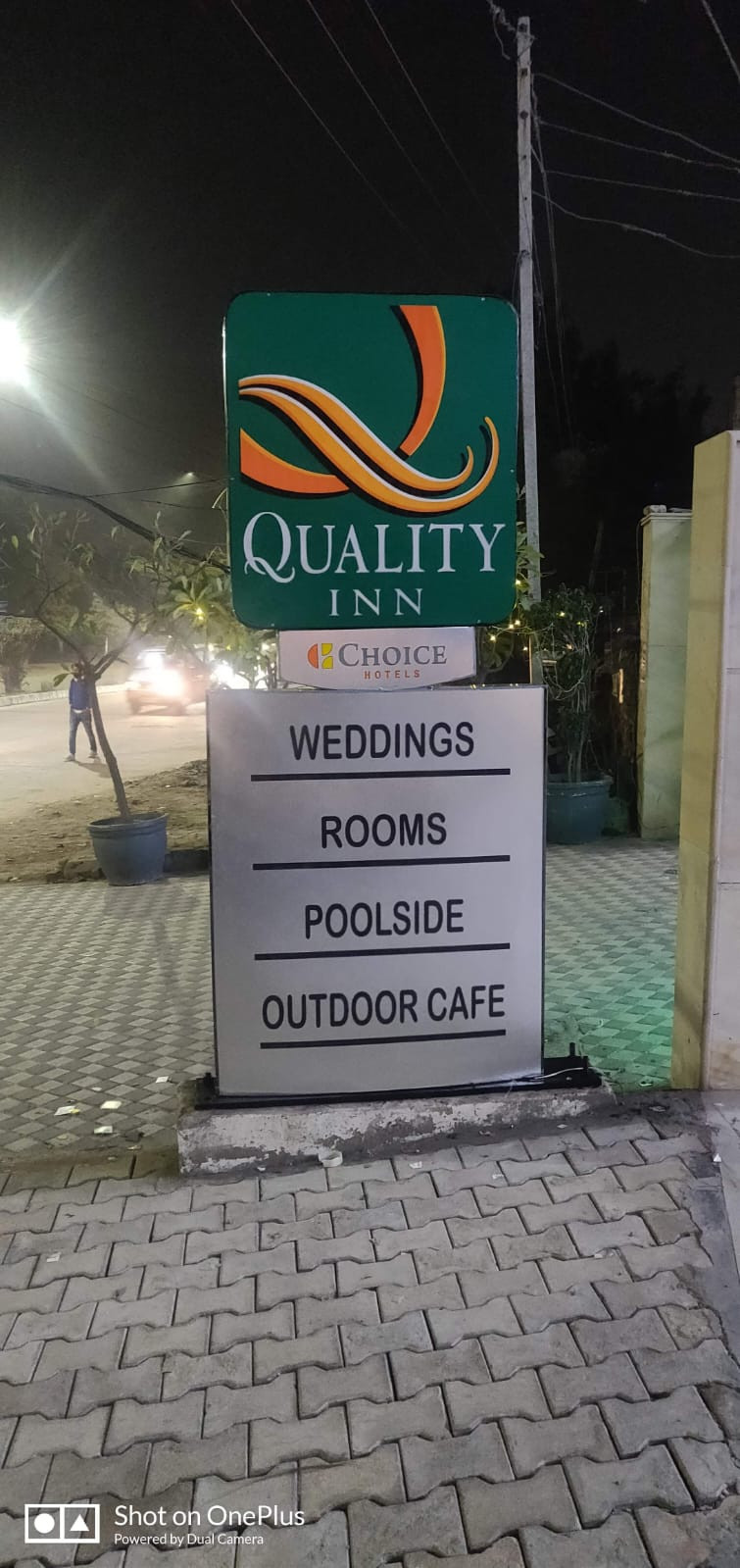

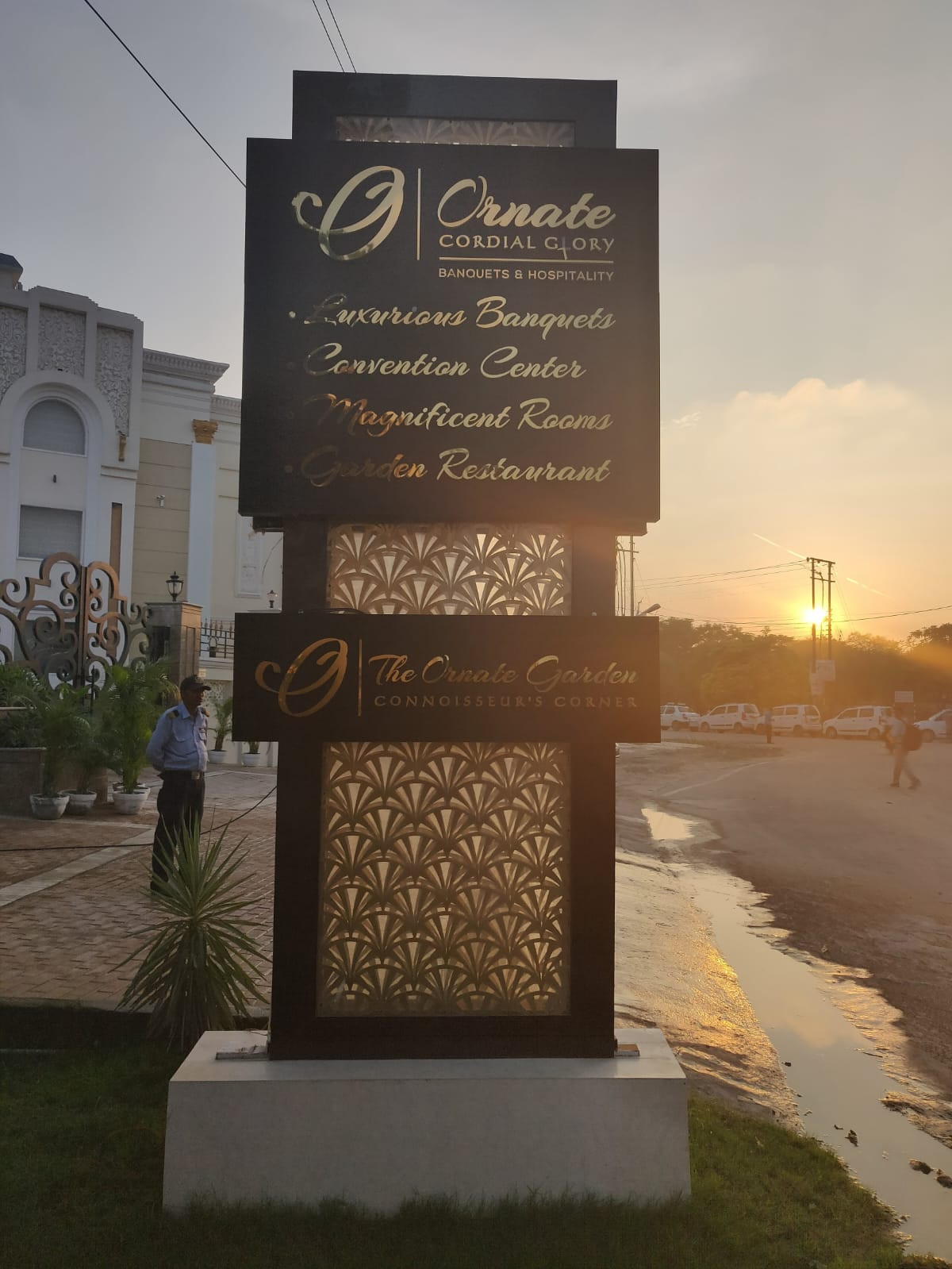

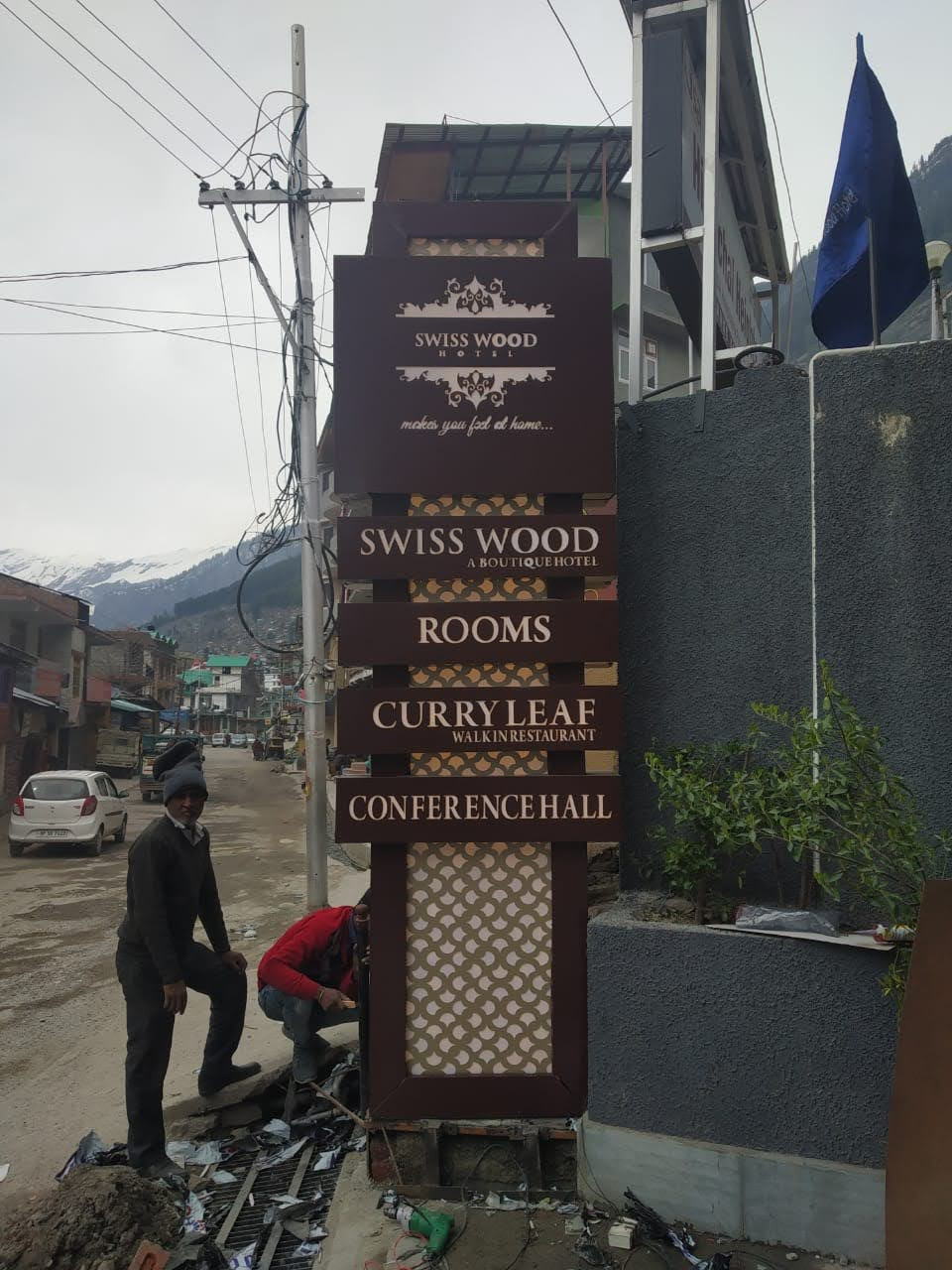

Specification for ACP + Acrylic Pylon Sign
1. General
Type: Free-standing Pylon Sign
Structure: MS (Mild Steel) frame with cladding
Finish: Weatherproof, outdoor-grade
Usage: Commercial exterior branding
2. Size
Overall Height: ___ mm
Overall Width: ___ mm
Depth/Thickness: ___ mm
(Final size as per approved drawing.)
3. Main Frame
Material: Mild Steel Square Tube
Tube Size: 40×40 mm / 50×50 mm (as required)
Thickness: 2.0 mm / 2.5 mm
Welding: Full welded structure
Anti-Rust Treatment: Red oxide primer + enamel/PU paint
4. Cladding / Body
Material: Aluminium Composite Panel (ACP)
Thickness: 3 mm / 4 mm (recommended 4 mm for outdoor)
Finish: Matte / Gloss / Metallic (as selected)
Fixing: Rivet + silicone sealing / concealed fastening
5. Branding / Lettering
Option A: Acrylic Raised Letters
Material: Cast Acrylic Sheet
Thickness: 3 mm / 5 mm / 8 mm
Finish: Gloss / Matte / Frosted
Fixing: Stud mounting with spacers
Option B: Vinyl / UV Printing
Type: Outdoor UV print / solvent print
Protection: Lamination (optional)

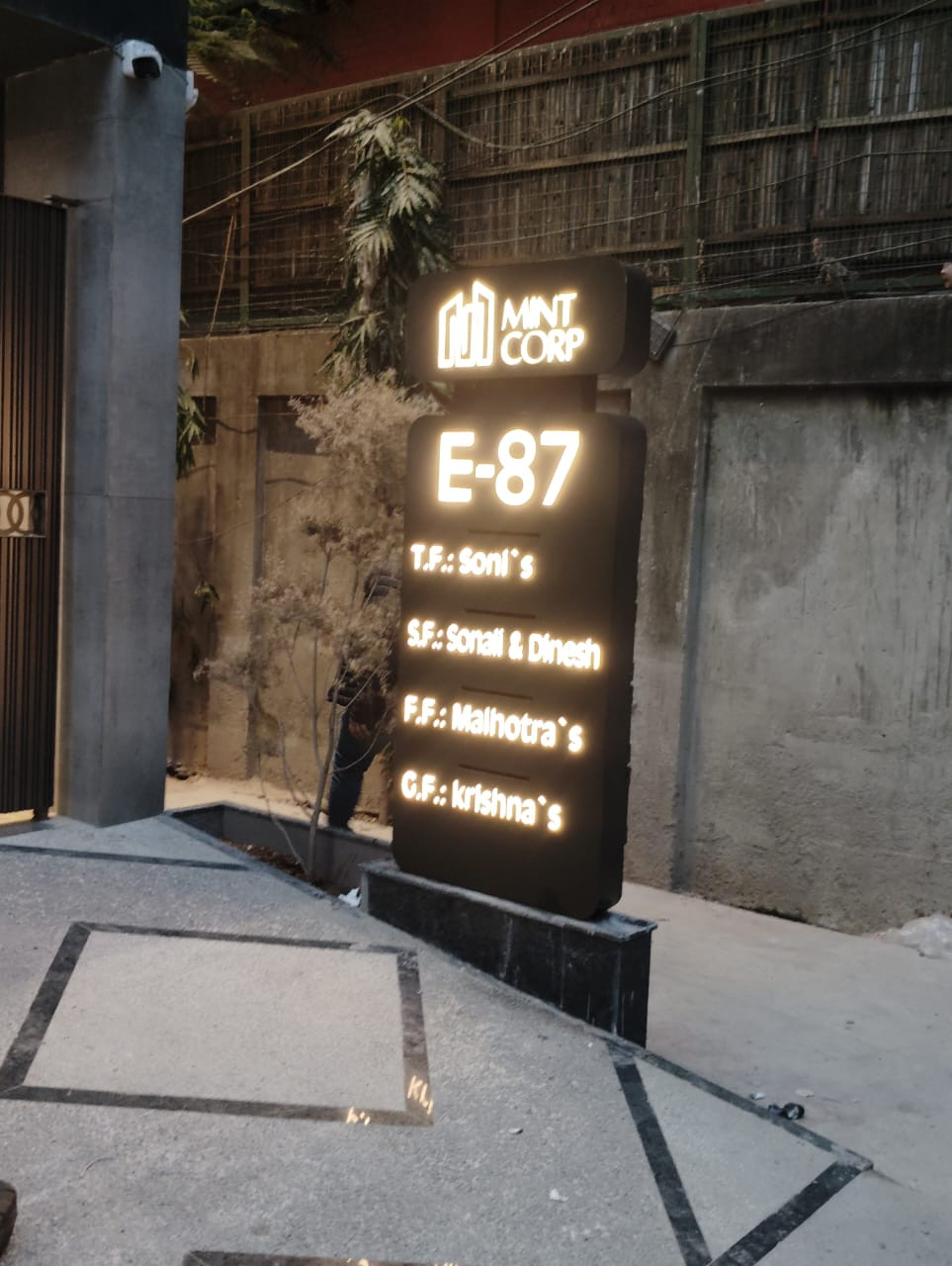

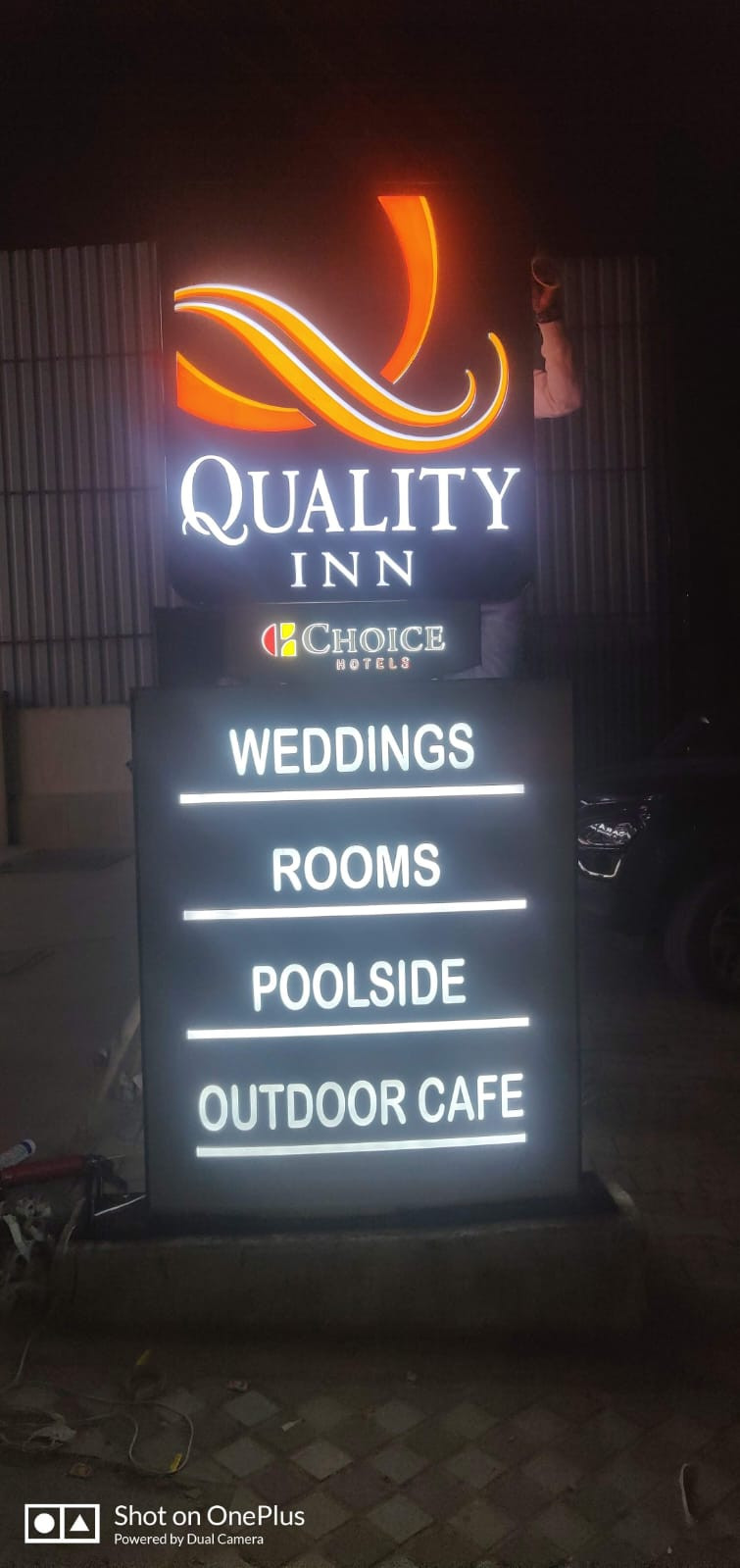

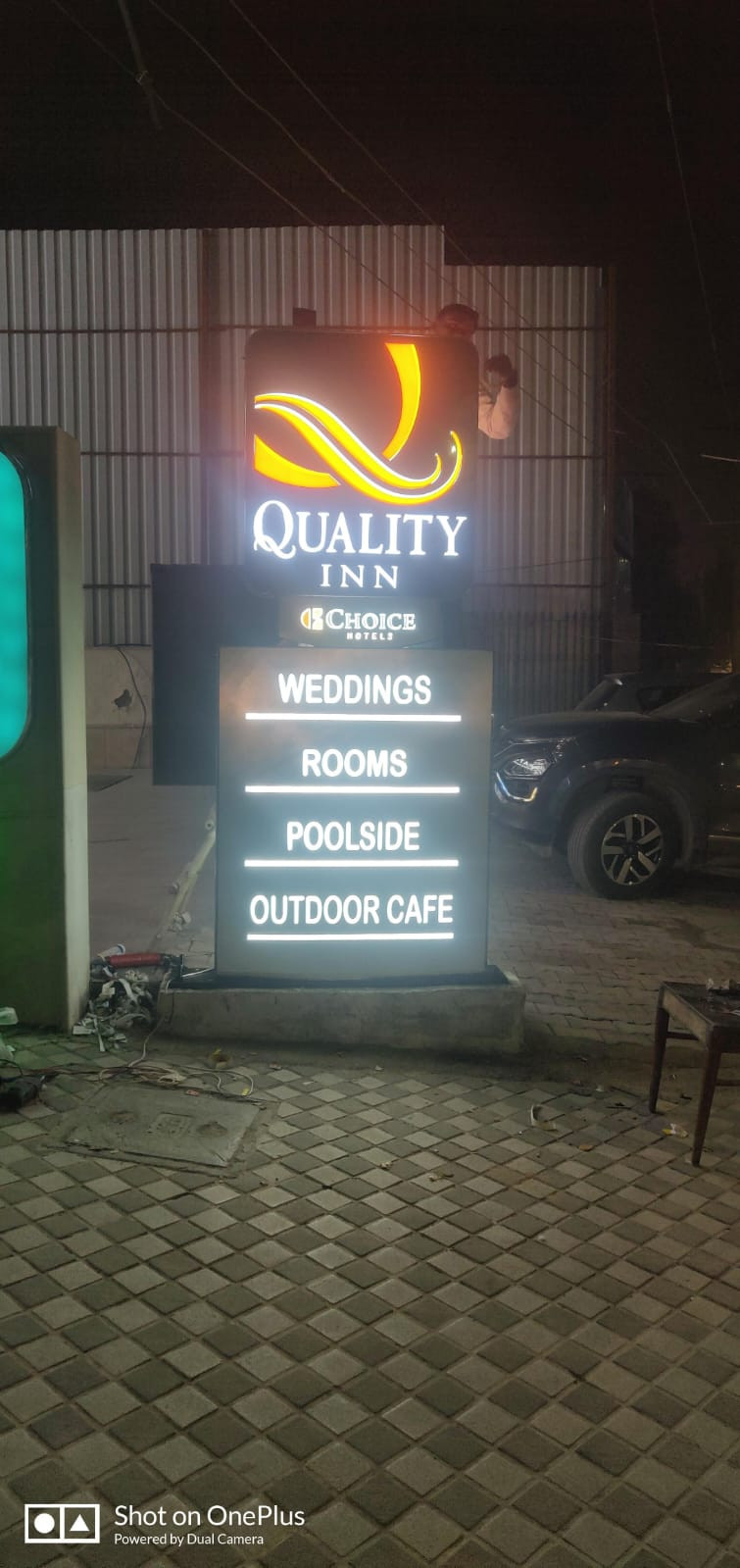

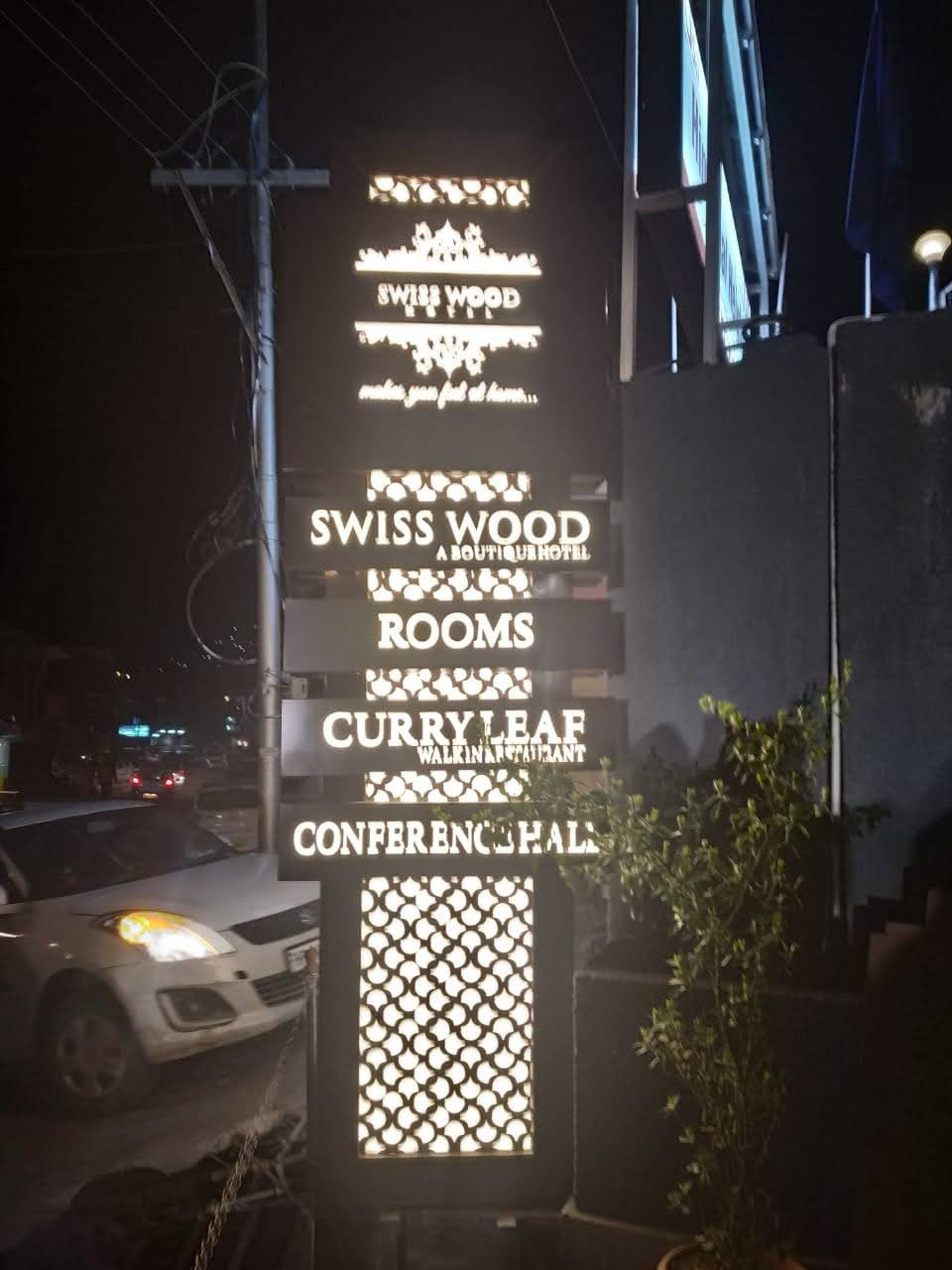

6. Illumination (If Required)
Type: LED backlit / front-lit
LED: 12V waterproof modules
Power Supply: SMPS (Meanwell or equivalent)
Wiring: Concealed internal wiring
Access: Service opening for maintenance
7. Acrylic Panel (If Light Box Type)
Material: Acrylic Sheet
Thickness: 3 mm / 5 mm
Finish: Opal white for illumination
Graphics: UV print / vinyl
8. Base & Foundation
Base Plate: MS plate 8 mm / 10 mm
Anchor Bolts: M12 / M16
Concrete Foundation: As per site condition
Installation: Proper leveling + grouting
9. Weatherproofing
Silicone sealing at joints
Waterproof LED modules
Outdoor grade ACP and acrylic only
10. Electrical
Input supply: 230V AC
Output: 12V DC
Earthing provision included
Cable: 1.5 sq mm copper (minimum)
11. Finishing
Frame paint: PU / enamel
ACP surface: factory coated
Acrylic: polished edges
Clean final finishing, no visible rivets if premium build
12. Warranty (Typical)
LED: 1 year
Fabrication & Installation: 6–12 months
ACP/Acrylic: Manufacturer warranty as applicable
